Green Flame CNC Pipe Profile Cutting Machine For Steel Structure Or Pressure Vessel

Brand Name : TAYOR

Model Number : CNCXG-600

Certification : CE

Place of Origin : China

MOQ : 1Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 30 Set a Month

Delivery Time : 30 days after payment

Packaging Details : Wooden Case

Name : CNC Pipe Profile Plasma Cutting Machine

Model : CNCXG-600

Application : CNC Pipe Profile Plasma Cutting for Steel Structure or Pressure vessel Cutting

Pipe OD : 50-630mm

Wall Thickness : 1-30mm Carbon Steel (Plasma Cutting)

Pipe Length : 6000mm

Controller : 5 axis Window Based CNC controller

Plasma Power Source Model : Hypertherm Powermax125

Contact Now

Pipe profile plasma and flame cutting Machine CNC pipe profile cutting machine

Model: CNCXG600-V

Application:

This machine has been designed as automatic circular tube profile plasma cutting machine to take user more efficient who facing complicated cut job of circular tube truss building .

Thanks to the multi-axis motion card and torch screen controller, this machine is easy to operate for field worker. This Pipe Plasma Cutting has been Machine widely applied in

Truss Building

  • Pressure Vessel Building
  • Chemical Pipeline fabricating
  • Oil pipeline manufacturing
  • Steel Structure pipe cutting

Features

  • Multi-axis controlled and free movement to finish pipe end or bevel cut
  • 10” Touch screen controller with appropriative software
  • Off-line programming
  • Compatible with AutoCAD and Tekla
  • Flame and plasma cutting torch for thin and stainless steel tube

Specification

Pipe Diameter Φ50-Φ630mm
Torch Rail length (Pipe length) ≤12000mm
Cutting model Flame
Plasma Cutting Thickness 1-25mm
Plasma model Hypertherm Powermax105
Flame cutting thickness 6-40mm
Photoelectric Height Sensor 0.1 sec response speed
Control System pipe profile cutting software
Data input Torch Screen Data Input
Max Loading capacity 4000Kg
Pipe Chuck 3 Jaws concentric chuck
Flame Max beveling angle ±60°
Plasma Max beveling angle ±45°
Flame cutting speed 50mm/min -800mm/min
Plasma cutting speed 100mm/min-4000mm/min
Moving Error ≤0.2mm /1000mm
Turning Angle Error ≤1° per 180°
Pipe Rotate speed 0-10000mm/min

Detailed Pictures

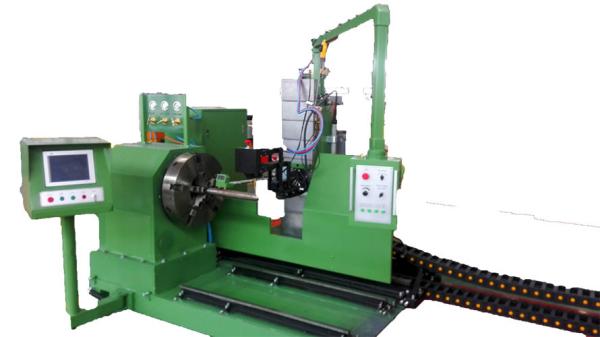

Green Flame CNC Pipe Profile Cutting Machine For Steel Structure Or Pressure Vessel

Profile Cutting Effect of CNCXG600-V

Green Flame CNC Pipe Profile Cutting Machine For Steel Structure Or Pressure Vessel

Green Flame CNC Pipe Profile Cutting Machine For Steel Structure Or Pressure Vessel

Order information

Order Code CNCXG600-V
Packing Wooden Case and Pallet
Packing Size 2200*5200*2000mm
Packing Weight 5000Kg
Delivery Time 30 Days after payment
